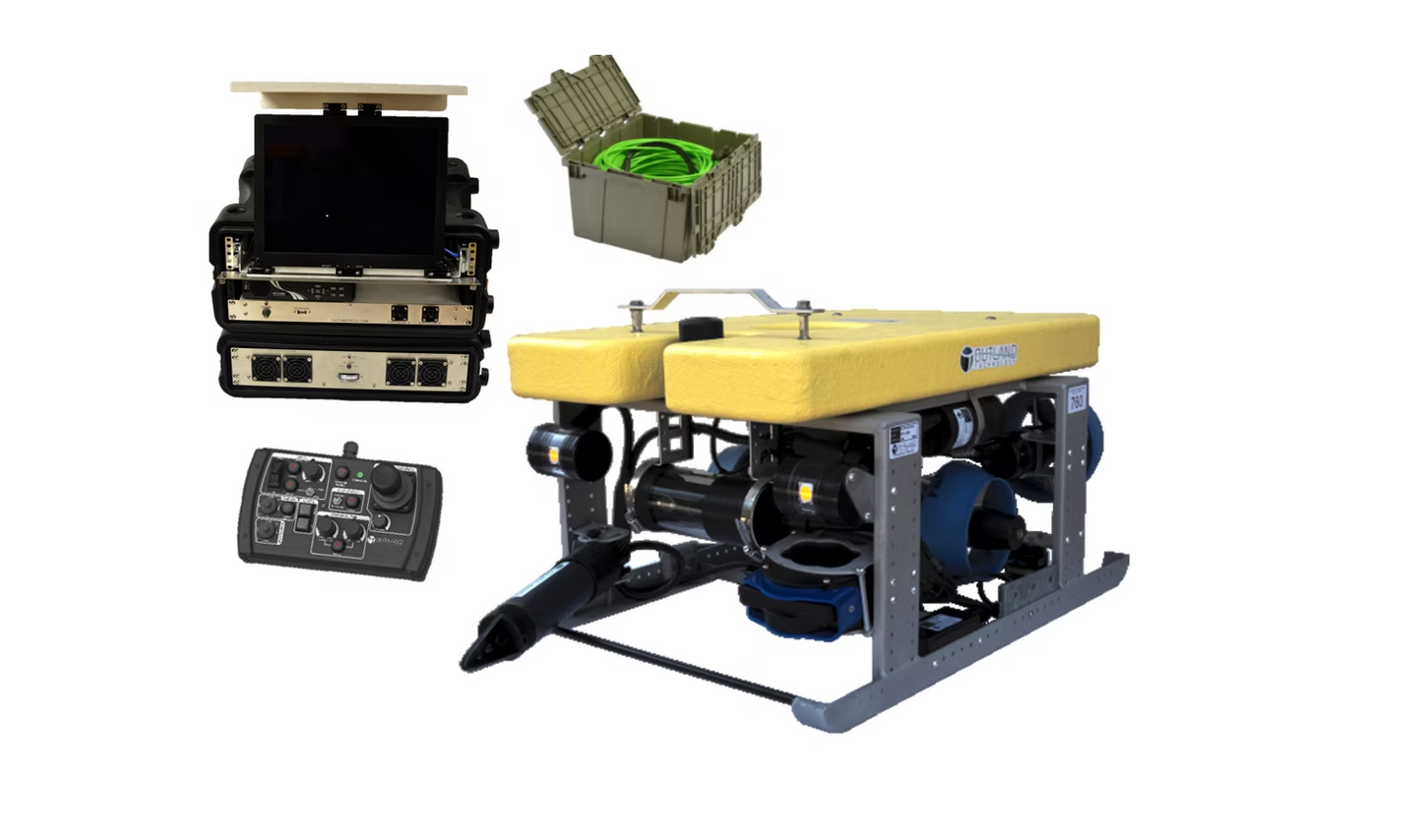

ROV-2500 SYSTEM WORKCLASS

OUTLAND 2500". 1000 ft (300 meter) rated. Now with LED lights. The ROV utilizes brushless DC, magnetically coupled thrusters. Outland designed a control system around these thrusters to maximize the power. Tilting Camera forward give High Resolution and low light Color in one small package. A rear fixed camera is standard. The ROV can now use a 1000 ft cable. Standard system ships with 500 ft.

The Outland 2500 is a work-class, high-performance ROV designed for search and recovery operations in demanding underwater environments. With a depth rating of 1000 ft (300 m) and a robust brushless DC thruster system, this ROV delivers exceptional maneuverability and power for precision tasks. Featuring dual high-resolution cameras—a forward-facing tilting camera with low-light capability and laser scaling plus a fixed rear HD camera—it ensures comprehensive situational awareness in challenging conditions. Integrated LED lighting (8600 lumens total) enhances visibility in murky waters, while video overlay with real-time depth, compass heading, and text display provides critical operational data. The Outland 2500’s digital control system optimizes thruster efficiency, ensuring stable and controlled navigation in high-current environments. Built for law enforcement, military, salvage, and marine research applications, this ROV is a reliable tool for rapid response underwater search and recovery missions.

Technical Specifications

High-Tech Magnetically-Coupled Thrusters
• Dual Color Tilting Camera (fwd) (SD-750 line)(HD-1080p) w/lasers, Fixed HD Camera (rear)
• Video Overlay (Time/Date, Depth and Compass, and text)
• All Digital Control of Lights, Cameras, Thrusters and Manipulator

VEHICLE
The ROV contains the following:
• 5 ea. 1 HP Brushless Thrusters
• 1 ea. UWC-360/d Dual SD&HD Camera w/lasers
• 1 ea. Rear Fixed HD Video Camera w/Lights
• 2 ea. High-Powered UWL-505 LED Lights
8600 lumens total (4300 lumens each)
MECHANICAL:
Dimensions 28 in. L x 20.5in. W x 15 in. H
(71 cm L x 52 cm W x 38 cm H)
Weight in air 65 lbs. (29.5 kg)
Payload Capacity 10 lbs. (4.5 kg)
Depth Rating 1000 ft. (300 m)
Thrust (per thruster) 0-41 lbs. (variable)
ELECTRICAL:
Input/Thruster Voltage 300 VDC
CABLE (C-3405)
MECHANICAL:
Size 0.55 in (14 mm) dia. x 500 ft. (150 m) long
Breaking strength 1000 lbs. (450 kg)
Jacket 80 Mil Thick Green Cellular Polyurethane
Weight in seawater Neutral
ELECTRICAL:
CAT5E 4 Twisted Pair; #24 AWG
Conductors 12 ea. #22 AWG
Power Supply & Controller
(PS-4000 & CON-1050)
CON-1050, MECHANICAL:
Size 23” W x 10” H x 20” D (58 x 25 x 51 cm)
Weight 36 lbs. (16.3 kg)
PS-4000, MECHANICAL:
Size 22” W x 7” H x 21.3” D (56 x 18 x 54 cm)
Weight 30.5 lbs. (13.8 kg)
ELECTRICAL:
Input Voltage 100-240 VAC (50/60 Hz)
Input Power 4500 Watt (MAX)
Power Out to ROV 300 VDC @ 13.3 amps (MAX)
Video Overlay, Time/Date, Depth, Heading, Text.
Includes 15”, 2000 nit, LCD monitor.
HAND CONTROLLER (HC-2000)
MECHANICAL:
Size 9” W x 5” D x 4.5” H (23 x 13 x 11 cm)
Weight 1.7 lbs. (0.8 kg)
ELECTRICAL:
Input Voltage (from Power Supply unit) 12 VDC
Data out to Vehicle RS-485
