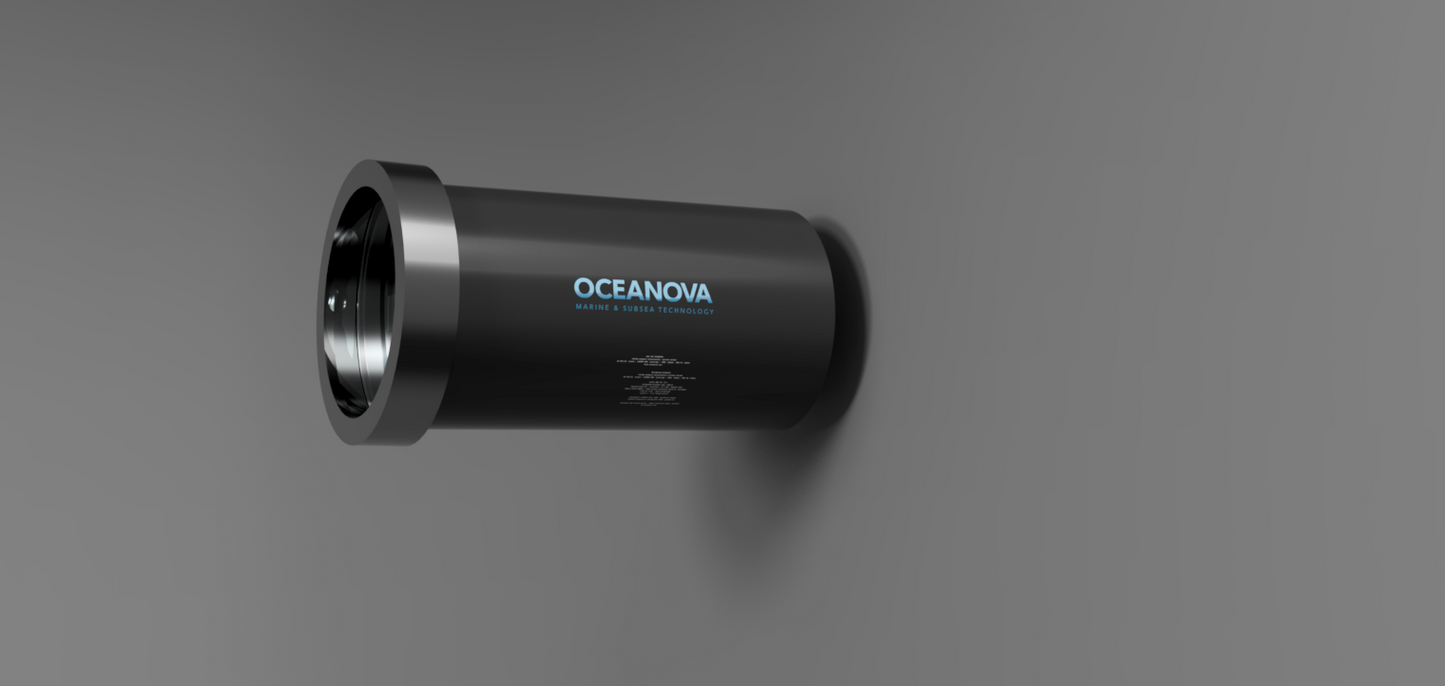

Oceanova Hyperspectral Camera
Oceanova Hyperspectral Camera
Regular price
$86,606.00 NZD
Regular price
Sale price
$86,606.00 NZD
Unit price
/
per
Taxes included.
Couldn't load pickup availability
Product Overview
The Oceanova Hyperspectral Camera is a high-performance imaging system designed for ultra-deepwater exploration, environmental monitoring, and industrial inspections. Engineered for deployment at depths of up to 1,000 meters, this advanced camera captures detailed hyperspectral data across a broad wavelength range, enabling precise material classification, marine biodiversity assessments, and subsea infrastructure inspections. Its rugged, pressure-rated housing ensures reliability in extreme underwater conditions, making it an essential tool for researchers, engineers, and defense applications.
Key Features
- Hyperspectral Imaging – Captures spectral data across multiple wavelengths for advanced material and biological analysis.
- 1000m Depth Rating – Pressure-rated housing for extreme subsea operations.
- High-Resolution Optics – Delivers detailed, distortion-free imaging with adjustable field of view.
- AI-Powered Data Processing – Real-time analysis for immediate insights and decision-making.
- Versatile Integration – Compatible with ROVs, AUVs, and fixed subsea monitoring systems.
- Corrosion-Resistant Construction – Built from marine-grade materials for long-term underwater deployment.
Technical Specifications
General Specifications
| Parameter | Specification |
|---|---|
| Spectral Range | 400 nm – 1000 nm (custom ranges available) |
| Depth Rating | 1000m (3280 ft) |
| Power Requirements | 24V DC, low power consumption |
| Communication Interface | Ethernet, RS-232, RS-485 |
| Material | Marine-grade aluminum or titanium housing |
| Weight | Approx. 5-10 kg (depending on configuration) |
| Mounting Options | Compatible with ROVs, AUVs, and fixed stations |
| Environmental Resistance | Corrosion-resistant, designed for harsh marine conditions |
Imaging Specifications
| Parameter | Specification |
|---|---|
| Sensor Type | CMOS or CCD hyperspectral sensor |
| Resolution | 1920 × 1080 (HD) or higher (custom configurations available) |
| Spectral Resolution | 2-5 nm (dependent on configuration) |
| Optical Field of View | 30° – 60° adjustable |
| Frame Rate | 30 fps (higher frame rates available upon request) |
| Exposure Control | Manual and automatic |
| Data Output | Hyperspectral cube, raw spectral data, RGB composite |
| Data Storage | Internal SSD or external data streaming via Ethernet |
| Illumination | Optional integrated LED or laser light source |
Applications
- Marine Science & Research – Identification of marine species, tracking invasive species such as Caulerpa, and deep-sea habitat mapping.
- Environmental Monitoring – Detection of pollutants, algal blooms, and variations in water composition.
- Industrial & Commercial Use – Inspection of subsea pipelines, infrastructure, and offshore assets.
- Defense & Security – Underwater surveillance, object classification, and threat detection for maritime operations.
